New Original Finisar FTL410QD2C

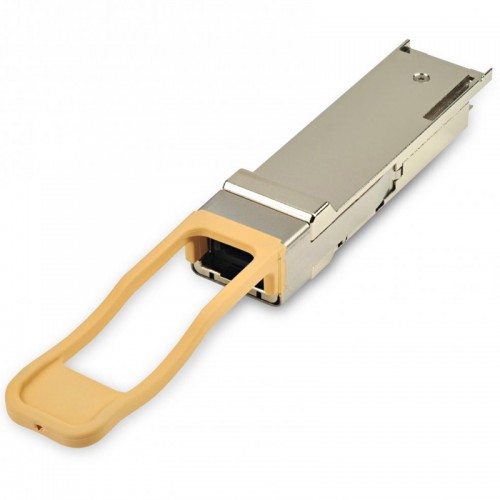

Finisar 40GBASE-SR4/4x10GBASE-SR 300m Gen2 QSFP+ Optical Transceiver
Condition: Brand New Factory Sealed
Warranty: 3-Year
Buy this new FTL410QD2C online now with confidence. We offer 30 day money back guarantee. Within 30 days of receiving the items, if you are not 100% satisfied with the item, you may return it for full refund.

https://www.finisar.com/optical-transceivers/ftl410qd2c

Finisar's FTL410QD2C QSFP+ transceiver modules are designed for use in 40 Gigabit per second links over parallel multimode fiber, including breakout to four 10 Gigabit per second links. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4 and compatible with IEEE 802.3ba 10GBASE-SR. Digital diagnostics functions are available via an I2C interface, as specified by the QSFP+ MSA. The optical transceiver is compliant per the RoHS Directive 2011/65/EU. See Finisar Application Note AN-2038 for more details.


Key Features

  •     Four-channel full-duplex transceiver module
  •     Hot-pluggable QSFP+ form factor
  •     Maximum link length of 300m on OM3 Multimode Fiber (MMF) and 400m on OM4 MMF
  •     Multirate capability: 1.06Gb/s to 10.5Gb/s per channel
  •     Unretimed XLPPI electrical interface
  •     Maximum power dissipation < 1.5W
  •     Reliable VCSEL array technology
  •     Built-in digital diagnostic functions
  •     Commercial operating case temperature range 0°C to 70°C
  •     Single 1x12 MPO receptacle
  •     RoHS-6 compliant (lead-free)


Applications

  •     40GBASE-SR4 40G Ethernet
  •     Breakout to 10GBASE-SR Ethernet
  •     Proprietary interconnections


Specifications

  • Distance: 300 m
  • Data Rate (max): 41.2 Gb/s
  • Protocol:
    • 10x Fibre Channel Compliant
    • 40G Ethernet Compliant
    • IB QDR Compatible
  • Low End Case Temperature (°C): 0
  • High End Case Temperature (°C): 70
  • Diagnostics: Digital
  • Transmitter: 4x VCSEL
  • Receiver: PIN
  • Voltage Supply: 3.3
  • Connector: MPO (MTP12)
  • Wavelength: 850nm Band
